One of our goals for the 2003 season is to acquire a dedicated trailer for Mista Ballista.

Last year our borrowed car trailer was barely able to carry it, and it worried us. This custom trailer was built for our length and weight requirements, and for multiple stabilizing feet.

In a previous life, the scrounged wheels and axles hauled homes from Pennsylvania to New Hampshire, and were abandoned, but not for long. So cheap, we bought an entire axle with wheels instead of one spare tire. They are supposedly rated as 6000 lb axles, so a pair of these guys should easily carry the ballista around the country.


Found these at a scrap yard while scrounging for structural steel. At 20 cents a pound, quite a bargain. The front of the trailer will bear the majority of the mass of the ballista while operating, so they will be mounted on the front beams.

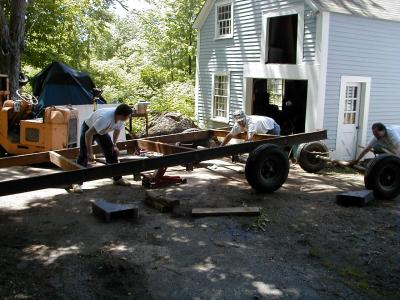

Once all our structural steel was cut to length, we carefully positioned the wheels and cross members so that everything was square. The very first beam took two tries to install correctly. We had already positioned the spring mounting brackets so it was important to make them even. The straps held everything together before the weld, and kept the entire system level.

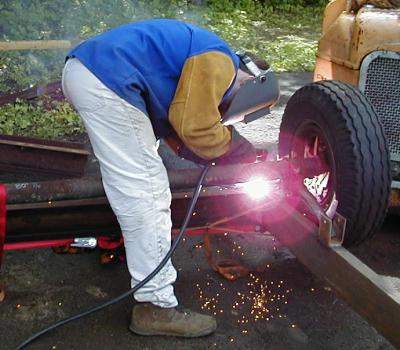

Dave put the weld in, making Roger's measurements permanent. Or so we thought. It didn't meet our exacting standards of squareness (over a 20 foot length) so we took it apart, and did it a second time until it was perfect.


We purchased a hitch system that needed to be welded on. The only new structural steel in the whole trailer was the triangular piece at the front of the trailer.


Once the frame was together, we flipped it over, and had to actually bolt in the two axles. Given the wobbliness of Dave's driveway, this was a significant challenge. Fortunately, everything fit perfectly. Amazing!


Dave is trying to sell his house, so the trailer had to be made road worthy that same day we assembled it. On went the trailer accouterments for minimal safety such as chains and jack.

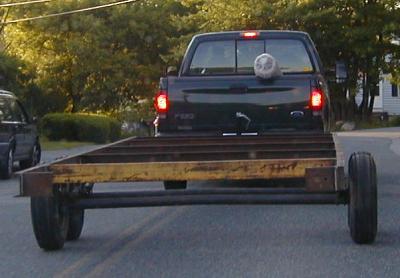

Off it goes to Eric's house. We followed as many back roads as we could, and safely made it to the driveway it will call home until the trailer is fully registered and plated. Next up, paint, lights, and brakes.


After painting the trailer, and getting all the lights hooked up, adding decking, and getting it registered as a home built, it was time to put the ballista on it. As Mista Ballista had final assembly done at the 2002 Chunk by a friendly forklift, we had to somehow lift the whole thing up and plunk it down on top with nothing but a few floor jacks and chunks of lumber. In this picture you can see the trailer behind Jeff.

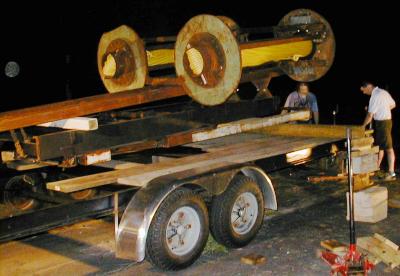

Eventually, the ballista was raised up on three rather precarious cribbing piles, and the trailer was pushed under it via a hand truck. (We didn't trust anyone's ability to drive the thing under there with only 6 inches of clearance on either side.) We only had about 2 inches of height clearance getting it under the cross bar. It is amazing how much weight a 6x6 pressure treated beam can carry. It is also quite impressive that it deflected about 6 inches under the ballista without exploding.


Last year, the ballista sat on a car trailer. To work properly, we had welded on long extensions to the dump frame. With a dedicated trailer, we needed to remove these old extensions. The old dump frame will now be bolted directly to the trailer which will provide the stability needed to raise our rope bundles 16 feet into the air.

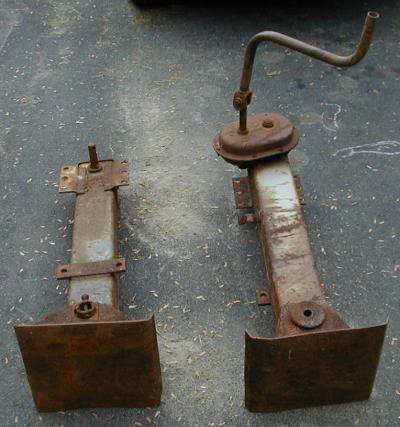

After getting things bolted down, the Big Feet were augmented, and then bolted onto the trailer. Already, these feet proved vital to the usage of the machine making it noticeably more stable once they were lowered into place. We couldn't put the feet on the very front of the machine because they would get in the way of the rope bundles during deployment. Currently they are located in such a way to avoid the rope bundles sliding past, and also avoid them when they are in the firing position. In this picture the feet are fully retracted. (The flash makes it hard to see that the toes are a foot off the ground.) You can see a hitch pin holding the toes onto the big feet. We need to travel with the toes removed in order to have enough ground clearance to make it over speed bumps. Eventually we added a second set of big feet to the back half of the trailer as well. Stability is our friend.


For 2009, new rules indicated that we could no longer dig holes in the ground. Instead we built 4 new cribbing blocks which are bolted onto the landing plates of our big feet. This let us raise the entire machine off the ground by about 2 more feet, giving us a launch angle of 40 degrees with no hole.
