Hatra Ballista Jr
Share this page
Search

After building and testing Baby Hatra Ballista, it was clear this design was worth pursuing. Eric decided we needed a mid-sized model which we could then enter into the World Championship Punkin Chunk in the 10 and under category.

The Hatra Ballista is described briefly in Greek and Roman Artillery 399 BC-AD 363.


Punkin Chunk 2008


Zukapult 2008


Punkin Chunk 2007


Oct 23:




Aug 20:


Sept 17, 2006 In Construction


Additional Pages for Hatra Jr

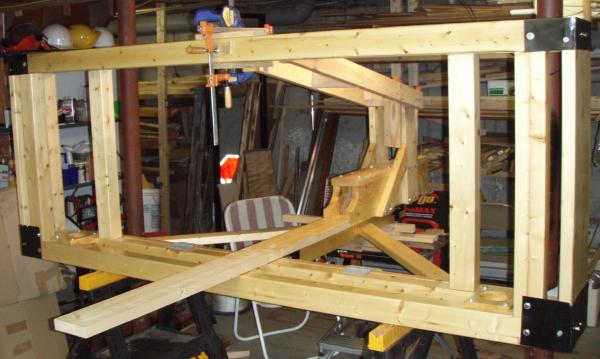

Hatra Ballista Jr After building and testing Baby Hatra Ballista, it was clear this design was worth pursuing. Eric decided we needed a mid-sized model which we could then enter into the World Championship Punkin Chunk in the 10 and under category.
Hatra Ballista Jr: Spring Frame A Hatra Ballista Spring frame is a bit different from a Straight or V spring ballista.
Hatra Ballista Jr: Scapus Frame There wasn't much to go on with historical references for the Hatra Ballista, just a meta spring frame covering, and an artist's rendition in the book Greek and Roman Artillery 399 BC-AD 363. As such, I opted to go with a mix of what we did with Mista Ballista in metal, or Baby Hatra Ballista.
Hatra Ballista Jr: Torsion The load bearing parts for Hatra Ballista Jr are very similar to what I made for Onager Jr, though I've made several changes to help assist in the operation and use of the machine.
Hatra Ballista Jr: Arms and Bowline A hatra ballista has inward swinging arms that allows for 90 degree's of rotation during the throw. Our model has 3 foot long arms. For our first year, these arms were made particularly strong.

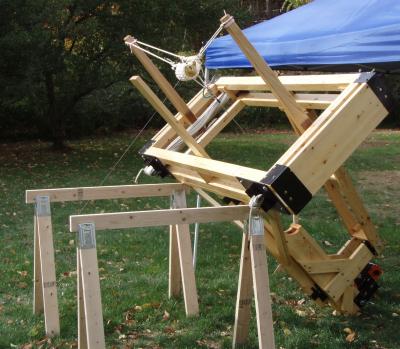

Hatra Ballista Jr: Deployment Hatra Jr is easy to deploy. That's one of the reasons it took so much extra time to build the thing.
Hatra Ballista Jr: Shooting Various pictures and stories of launching Hatra Ballista Jr.
