All winter during 2003 we have been collecting the parts we need to accomplish our 2003 chunk goals. Here are a bunch of pictures of these random parts. Can you guess what they are for?

Does it work? Jeff fixes the electrics as we experiment with hoses and fittings.


Acquired from Ebay, and only used once before. An amazing deal.

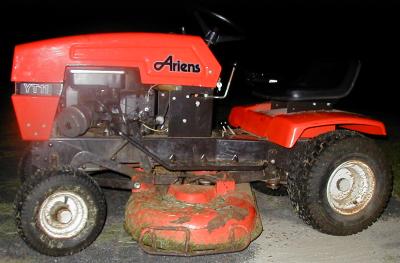

From the MIT domestic recycling mailing list. Being thrown out due to broken transmission. Fixed in the tormented driveway and now mowing my lawn too.

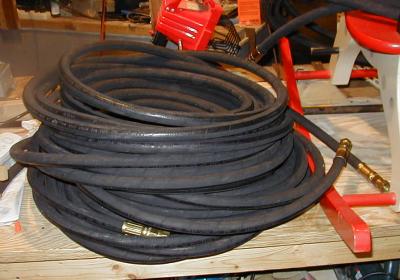

Drat, we had to buy these 40 foot lengths new, but Ebay found us a good deal. The most expensive bit on this page so far.

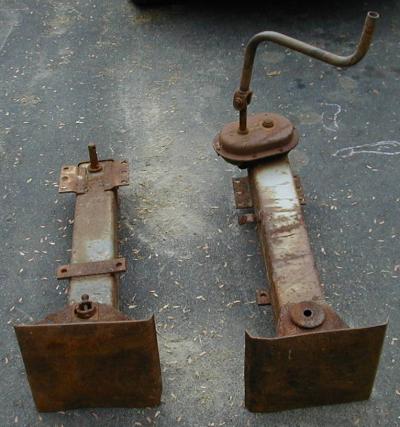

Found these at a scrap yard while scrounging for structural steel. At 20 cents a pound, quite a bargain.


In a previous life, they hauled homes from Pennsylvania to New Hampshire, and were abandoned. But not for long. So cheap, we bought an entire axle with wheels instead of one spare tire.

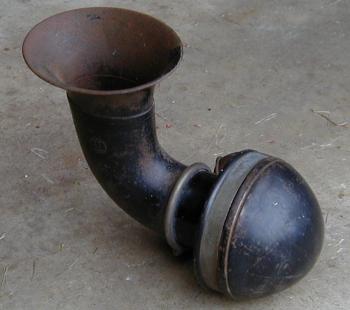

Dave had been saving this German made gizmo for many years. Perhaps it will be useful on the ballista.

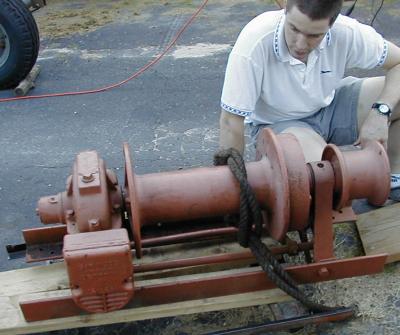

Roger found this winch in the Want Advertiser. Dave and Roger went to the previous owner's place and discovered that everything must go. We got this monster cable puller plus a hydraulic motor for a song and dance.

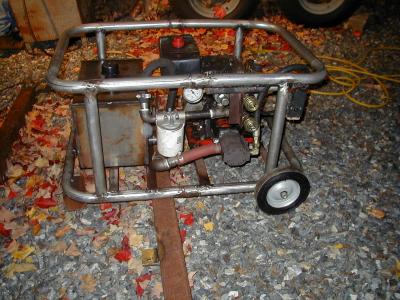

Ok, so the lawn tractor didn't get turned into a hydraulic pump. As it turns out, a snow blower lost its blow, and it's ticker was surgically removed. It was then transplanted into this mobile hydraulic pump system. On the left is the hydraulic fluid reservoir. On the right is the motor and pump. Two hydraulic quick-releases (yellowish color circles on the front right) let us detach from the ballista for ease of travel.
