Mista Ballista : 2006 Rope Bundle Reconfiguration
Share this page
Search

In 2005 we broke our fancy fiberglass arms. In 2006 we got the new carbon fiber arms and video taped them in action in the summer at our DVD from the History Channel.')">2006 History Chunk. This led us to discover how much they bounced around the outer stanchions. We were getting multiple recoils after every shot, sometimes back at least 30 degrees. That was also just with 2000 lbs of pullback, which is much less than we expect to use in competition.

This was accounted for in Greek Ballistae by the notch cut out of the outer stanchion. The arm is therefore able to swing forward farther before hitting the outer stanchion, allowing the heel and rope to slow the momentum of the arms. (A feature we failed to account for when we first built our machine.) We decided it was high time to just move our outer stanchions out of the way, as we are not able to put a notch in the steel as occurred in wooden ballista.

First we needed to extract the rope. We did this by banging out the epizygis on whichever side was easiest. Next, we slotted cardboard through the scutula hole so as not to get grease over the rope, and pulled it out.

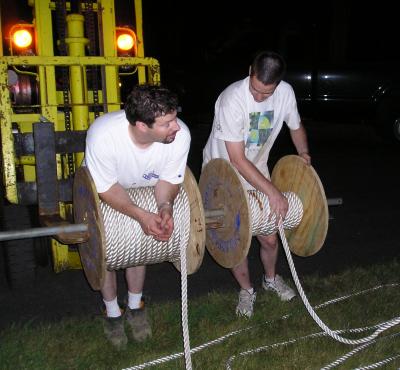

Then we rewound the rope back onto the spools. Dave's forklift proved quite handy as a spool hanger.

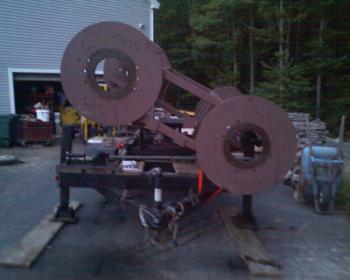

Then we tried to get the rope bundle frame off the trailer. Oops. Kevin grabbed a picture with his camera phone. We continued with two forklifts until the bundles were safely on the ground.

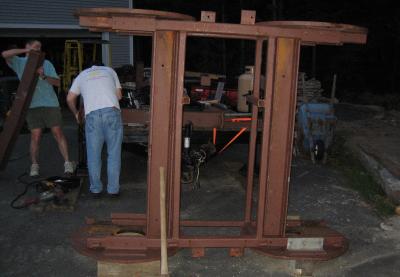

Cutting torches were used to cut out the outer stanchions on one side, and the bolts were taken out of the cast iron side. Dave grabbed a picture of the seemingly naked rope bundle frame.

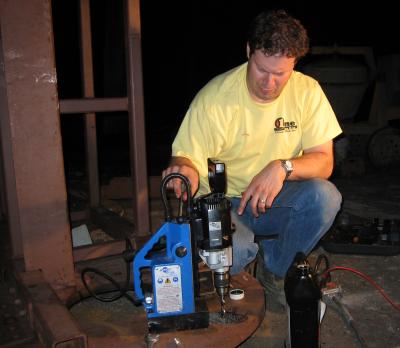

Dave uses his new magnetic base drill to bore nice square holes into the scutulas so we can tap them for the bolts needed on the cast-iron side of our rope bundles.

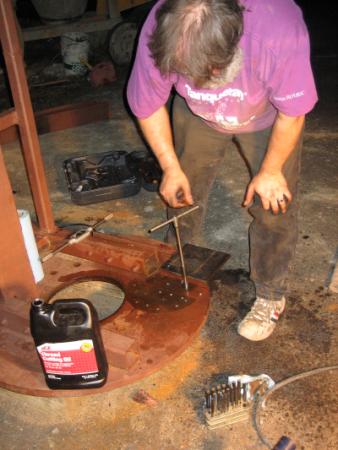

Next came the hole tapping. This puts the threads directly into the cast iron so we can bolt the interface plate onto the scutula. (You can't easily weld steel to cast iron.) 14 holes in all.


Next, we bolt in the stanchion. Then flip the bundles, and weld the other side into place.

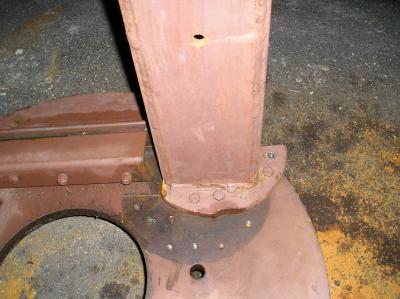

This picture is nice in that you can see where the original bolt-down location was, and that we are moving the stanchions about 6" forward and slightly outward.

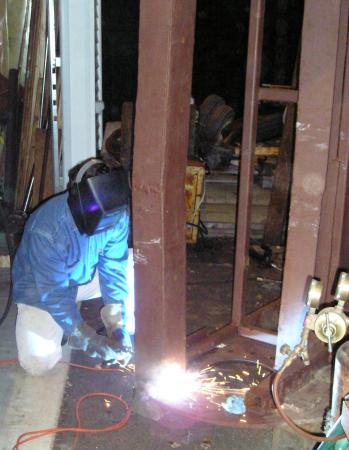

Gratuitous picture of Dave welding the stanchions back in.

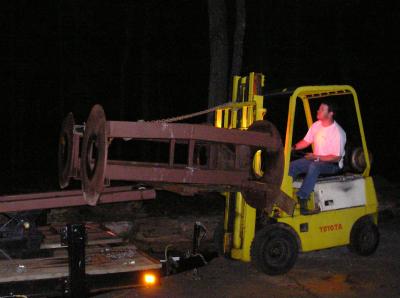

The last time we tried lifting the rope bundles onto the ballista we had wound them on the ground, then lifted them with the forklift. Various bad things happened (which is why it's not a pictoral on the website). This lead us to put the rope bundle frame back onto the trailer empty. It worked quite smoothly, though there were a few tense moments. The challenge is that the forklift can't pull all the way up to the scapus since the trailer tongue is in the way.

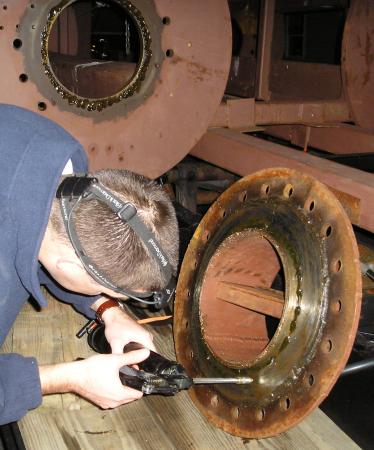

Grease up the interface between the modiolus and scutula.

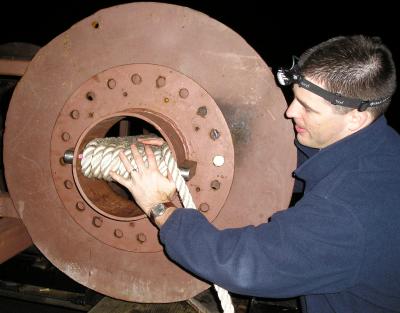

Pack in the first row of rope. We get 10 loops of this 1" rope across our first row.

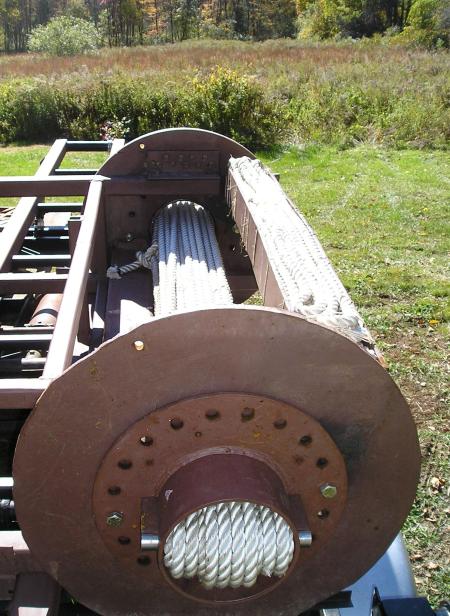

We had trimmed off our extra rope which didn't fit into the rope bundle in the summer. This time, however, we put even less rope into our bundle than last year with a strategy of getting a different power/recovery curve from our bundles. We didn't want to loose the opportunity of using more rope in future years, so we neatly tucked all the extra rope into the newly moved outer stanchion, and tied it all in with a sailing knot.

Also, you can see we've got Mr. B back out in a field for a little more testing. Huzzah!

See the 2006 Punkin Chunk for more on when we competed with them.


Videos

Here is the slow-motion video that convinced us to put the project of moving the stanchion to the top of our priority list. This was captured during the DVD from the History Channel.')">2006 History Channel Chunk.


Google Video Service
Mista Ballista slow motion


Information:
Slow motion of Mista Ballista firing. Shows the extent of the arm recoil.
18 sec - Jul 8, 2006
