Onager Jr : Flinging potatoes
Share this page
Search

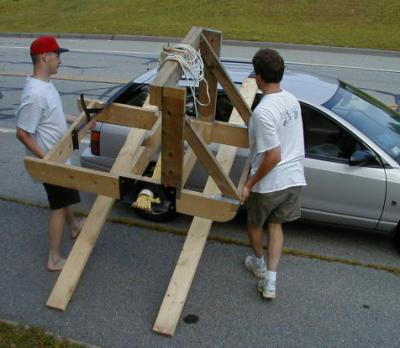

Loaded onto the car and ready for a drive to family reunion. I had finished it this morning, and the first test shot was 3 feet. How dissapointing.

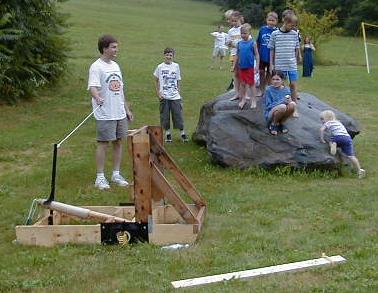

Here we are about to fire a rock into a pond at reunion. It was a huge attraction for the kids who ran about collecting rocks for me. After tightening up the rope bundles with the 2x4 in the forground of the image, we were tossing fist sized rocks about 150 feet.


Life is not good for the throwing pouch.


Ready to launch a pouch full of potatoes. Despite the pouch's horrible suffering, it continued to function for a while. This image has a nice view of the trigger mechanism. It is made from an old bed-rail which was cut up, then welded together. My welder is the cheapest gassless MIG available at Sears. (Is a gasless MIG an M?)

To push the arm down, I would pull back on the arm by hand, managing about 2 feet of pull. Next, some brave soul would stand on the onager's arm, pushing on the breaker beam while I continued to push down on the arm. Using this rough technique, we estimate about 200+ pounds of force available at the end of the arm.

Not in the picture are two brave souls with baseball gloves standing 150 feet down range hoping to catch a potato. Little do they realize the rain of death about the fall upon them.


After a long day of tossing potatoes, Roger helps me run the machine up the skids back on top of my car.

By this time, not only had the vertical breaker beam been destroyed and removed, the top beam started showing cracks. We moved the lower support beam up, creating a 4x6 for a breaker beam which continued to function fine. Despite my initial worries, the arm doesn't seem to care that it is only whacking such a small area at the top, as no cracks are currently in evidence on it.
