In June 2005 my brother Greg came out from California, and we spent time shooting the catapults. I recorded the results for Baby Ballista.

Greg prepares to launch small rock with Baby Ballista. I welded an old steel tube to a medium sized barn-door style hinge, and that slid into the shaft of a broken halogen lamp. (The kind with the bowl turned upwards.) A bit of wood with a 45 cut into holds the ballista at a nice angle.

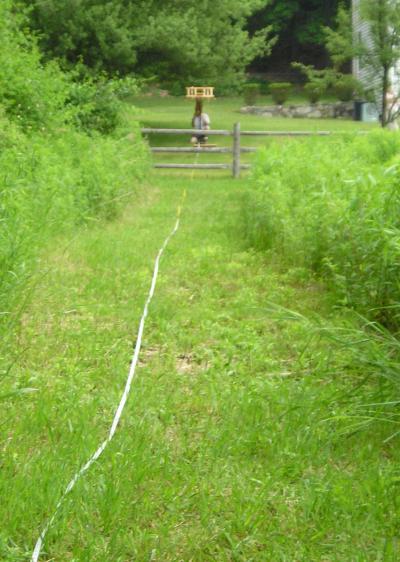

While waiting downrange, a view of the tape measure and the ballista aimed at me. We had a narrow path cut through the meadow we aimed for. Sometimes it landed in the trail, sometimes it got hung-up in the trees, and other times it landed and disappeared into the shrubbery.

Results

A table of the results. Tightened means the bundles were torqued up just before that shot. If it wasn't tightened, then usually the distance dropped a little as the nylon relaxed.

Tightened	Rock Weight in ounces	Distance in feet
X	1.5	144
	1.5	133
X	1.3	185
X	1.3	196
X	1.3	195
	1.0	212
	.6	212
X	.5	252
	1.3	204
